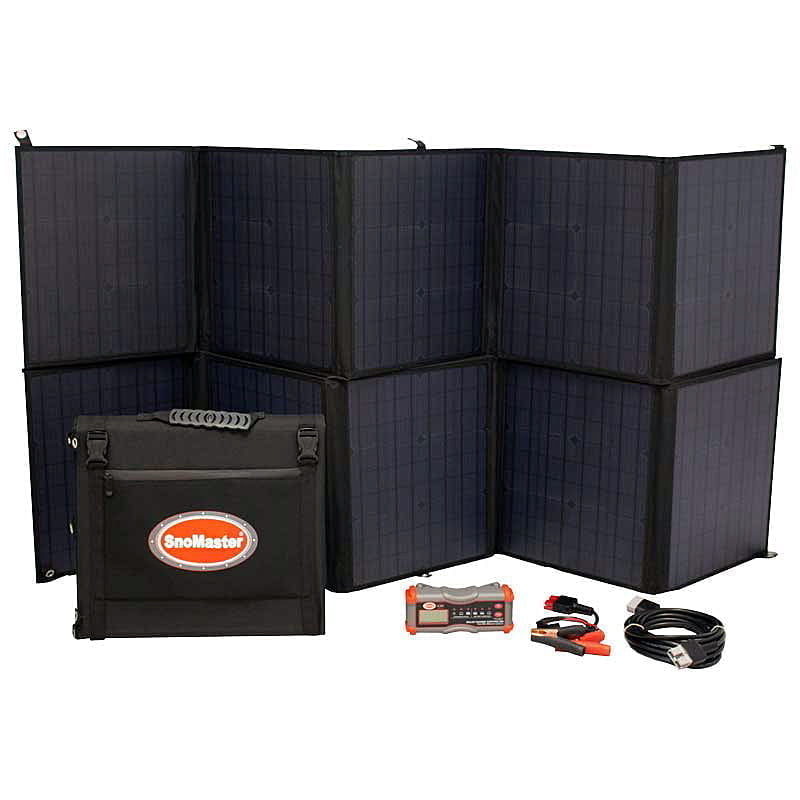

The Snomaster 200W Solar Panel kit lets you power up your leisure batteries without filling up your load space. Not only do you get a compact, folding 200W solar panel mat, but you get the regulator and cables too – just add sun.
The Snomaster 200W Solar Panel is built for tough conditions, using high quality components which provide dependable performance and reliability in an easy to use compact solar kit.
The kit contains a 200W 10 section lightweight folding solar panel mat that utilizes high performance monocrystalline cells. Due to this high-end technology, this portable solar panel boasts 19.5% efficiency.
The kit also includes a Smart 15 Amp PWM (Pulse Width Modulation) weatherproof controller for efficient charging. The controller is suitable for use with 6 common battery types – AGM, gel, calcium, lithium iron phosphate (LiFeP04), lithium titanium oxide (LTO) and lead-acid wet batteries. The controller has integrated 50A anderson style connectors and the rugged design features a large LCD screen and weatherproof housing with rubber corner protection.
Also included in the kit is an extension lead with 50A anderson style connections for easy positioning of the solar panel and a lead equipped with crocodile clamps for connection between the controller and your battery.
The solar panel mat folds up to form it’s own carry case with storage pockets for accessories and a carry handle with a non-slip rubber grip.
Get off grid power for wherever you camp with the handy, lightweight and compact Snomaster 200W Solar Panel.
Features
- Folding 200W solar panel mat is lightweight and compact for easy transportation
- Uses high performance efficient monocrystalline cells
- Smart 15A pulse width modulation controller included
- Supports 6 common battery types
- Contains all leads you will need for operation
- Folds away into a handy carry case with pockets for accessories
Specifications
- Cell type: monocrystalline
- Cell Efficiency: 19.5%
- Maximum power (Pm): 200W
- Current at max power (Imp): 11.37A
- Voltage at max power (Vmp): 17.6V
- Output connection: 50A Anderson style
- Cell encapsulation: PET lamination
- Bag material: 900D polyester
- Dimensions (folded): 380mm L x 420mm W x 150mm H
- Dimensions (unfolded): 1870mm L x 815mm W
- Weight: 9.1kg inc. accessories
Controller specifications
- Micro controller unit: Pulse width modulation (PWM)
- Rated solar panel amps: 15A
- Readout: LED
- Supported battery types: 6
- Input/output connectors: 50A Anderson style
- Dimensions: 180mm L x 77mm W x 60mm H
- Weatherproof: Yes
- Weight: 475.5g
